Reinstalling engine coolant fan (FC)
WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

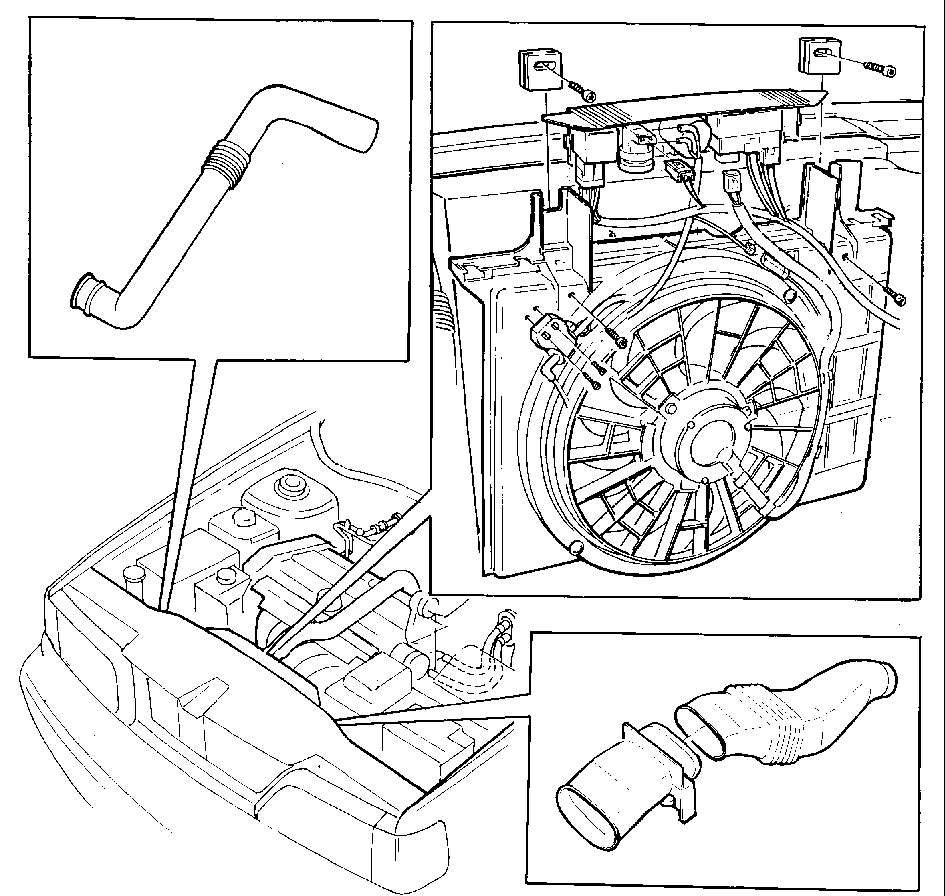

Install:
- engine cooling fan (FC) and shroud
- fan shroud spacers
- relay mounting and fan control (FC) connector
- EGR valve vacuum hoses (yellow to EGR valve and white to intake manifold).
- four screws holding engine cooling fan (FC) shroud.
- air duct to control module box.
- canister purge (CP) valve
- hose and connector to canister purge (CP) valve.
- air intake and intake hose to air cleaner (ACL).
- upper charge air pipe on charge air cooler (CAC) (turbocharger (TC))
- cable on battery negative terminal.
- enter radio code if anti-theft coded radio installed.
- Erase diagnostic trouble code (DTC) 3-2-5 in the engine control module (ECM) (turbocharger (TC)).
