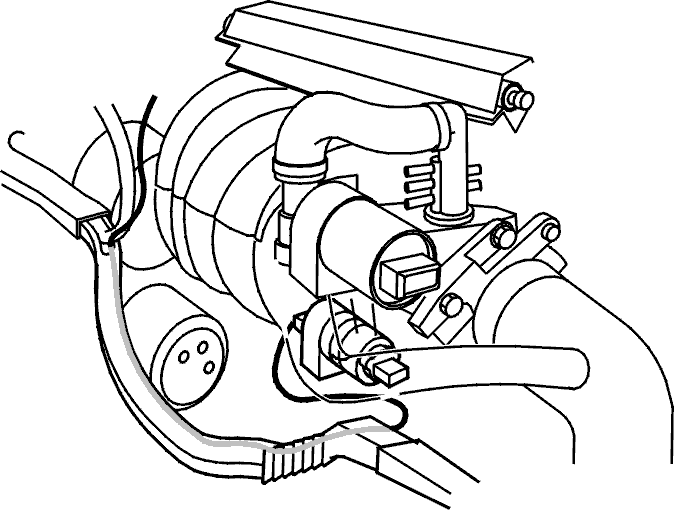

Installing a new fusible link cable in the cable duct
WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.
Install:
- New cable (routed in the same way as the old one).
NOTE:
Ensure that the entire cable is inside the cable duct. Otherwise the duct cannot be closed. Loop excess cable inside the duct.
- Cable connector to terminal above radiator.
- Cable to starter motor and tighten. Tighten to 20 Nm
- Solenoid cover.
