Replacing the coolant pump: Reinstall

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

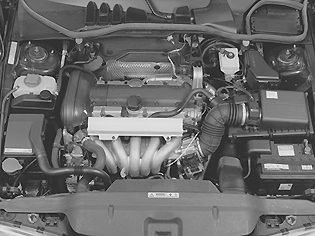

Fig 1: Under-Hood View

Courtesy of VOLVO CARS OF NORTH AMERICA.

Reinstall the removed components:

Upper timing belt cover.
Tighten to 8 Nm (6 lb.ft) .
Front timing belt cover.
Tighten to 12 Nm (8.8 lb.ft) .
Install the auxiliaries belt.
Reinstall the servo reservoir and the expansion tank.
Ensure that the hoses are correctly positioned.
The cover in the fender liner.
The wheel according to Installing wheels .

Fill the cooling system with Volvo original coolant.

Wipe clean and check the engine compartment.
