Removing components from the transmission

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

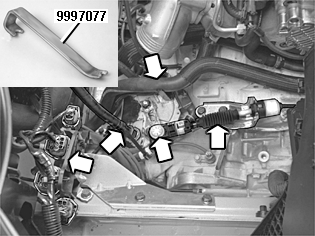

Fig 1: Identifying Special Tool 999 7077 (Jimmy Tool) For Removing Transmission Components

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove:

the gear selector cable. Use jimmy tool 9997077 to detach the ball joint for the cable from the lever
the cable mounting from the transmission
the oil pipe from the cover on the transmission. Plug the pipe and the connector on the transmission.

Unhook the mounting with the connector for the transmission from the bracket for the air cleaner (ACL) housing. Disconnect all the connectors.

Remove the bracket / guide for the heater hoses on the transmission.
