Lowering the engine and the transmission

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

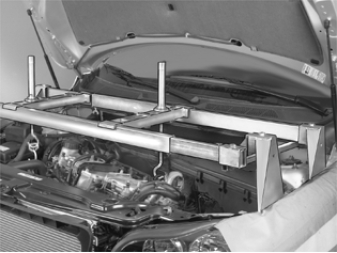

Fig 1: Lowering Engine And Gearbox
GLL109740Courtesy of VOLVO CARS OF NORTH AMERICA.

Lower the engine / transmission on the left-hand side using the hook.

Check that no hoses or cables are being stretched or trapped when the engine is lowered.

Lower the engine so that 120 mm  of the free threads on the lifting hook can be seen.

Raise the car.
