Detaching the power steering line

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

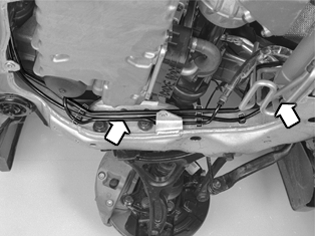

Fig 1: Identifying Power Steering Line And Evaporator Lines

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the screw for the clamp for the power steering line on the right-hand side at the rear edge of the frame.

Unhook the servo and the evaporator lines from the holders on the right-hand side of the sub-frame.

For cars with fuel powered parking heaters:

Unhook the fuel line from the holders.
