Installing components on the engine and subframe

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

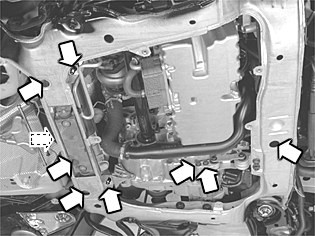

Fig 1: Identifying Lock Nuts And Screws

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install:

new M10 lock nuts for the steering gear and one M10 screw. Tighten
1 M10 screw for the front engine pad. Tighten
the mounting for the engine stabilizer brace to the transmission. Use new screws. Tighten according to Summary of tightening torques for specific components .
