Removing level sensor assembly

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

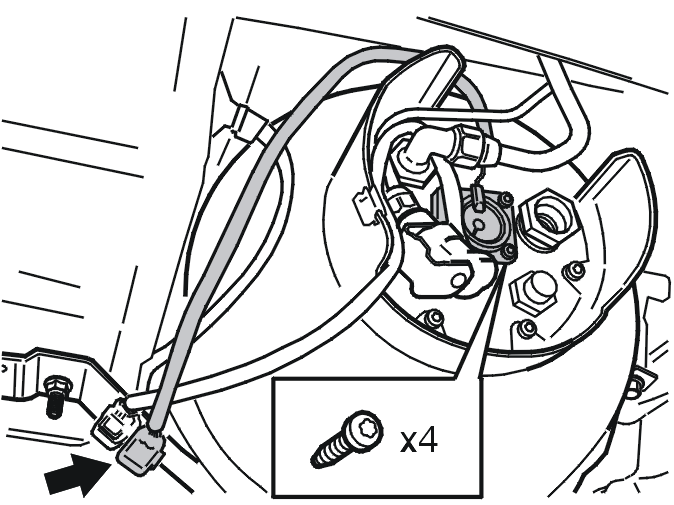

Fig 1: Identifying Fuel Level Sensor Assembly, Connector, And Screws

Courtesy of VOLVO CARS OF NORTH AMERICA.

NOTE:

Always clean around any connections that will be disconnected. This is to prevent contaminants from entering the system.

Remove:

the guard for the gas tank
the connector
the four screws

NOTE:

There may be residual pressure in the tank. Slacken off the screws one revolution and release using a screwdriver and allow the gas to hiss out.

WARNING:

Take care when working with highly pressurized gas. There is a risk of explosion and cold damage. Carry out any work outdoors or in a workshop with extraction fans.

the level sensor assembly.
