Removing the torque control arm

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying Engine Stabilizer Brace

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove

the screw for the torque rod mounting in the torque control arm on the engine.
the screws at the suspension turrets.
the torque rod.

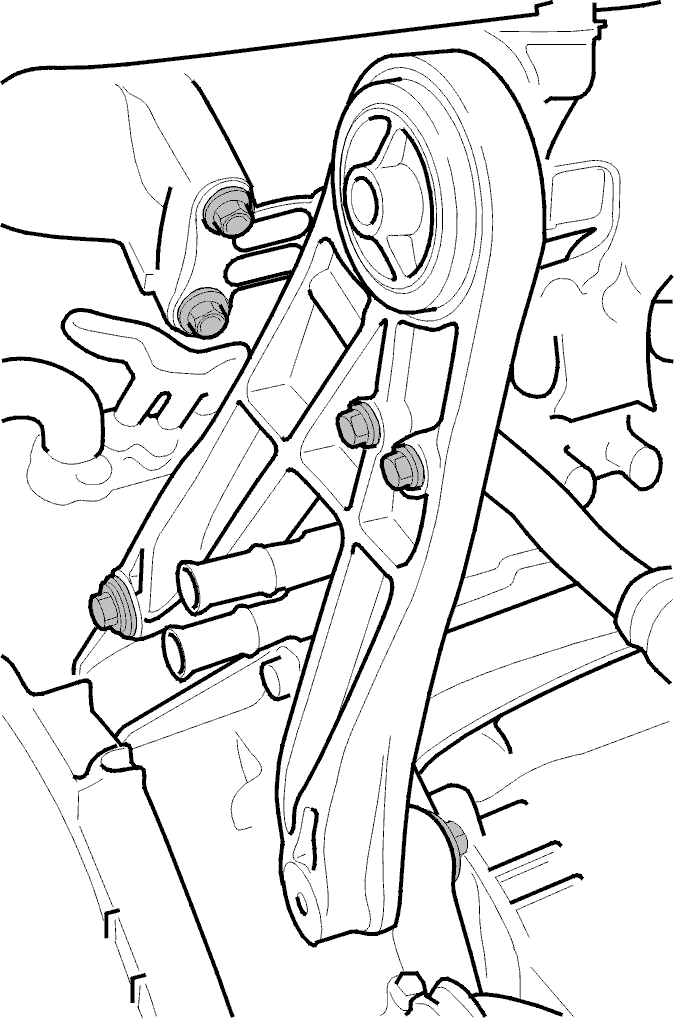

Fig 2: Identifying Torque Control Arm And Screws

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the 6 screws retaining the torque control arm.
