Replacing the torque control arm: Preparation

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

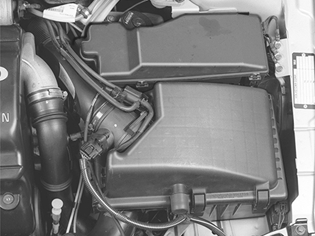

Fig 1: View Of Air Cleaner Housing Assembly

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove

the connector from the mass air flow (MAF) sensor and the turbocharger (TC) control valve.
the turbocharger (TC) control valve from the air cleaner (ACL) cover. Move it to one side.
the inlet hose between the turbocharger (TC) and the air cleaner (ACL) cover. Warm the connections to the air cleaner (ACL) cover with a hot-air gun. This will make removal easier.
the inlet hose between the air cleaner (ACL) housing and the front panel.
the air cleaner (ACL) cover from the air cleaner (ACL) housing.
the air cleaner (ACL) housing.
