Installing the torque control arm

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

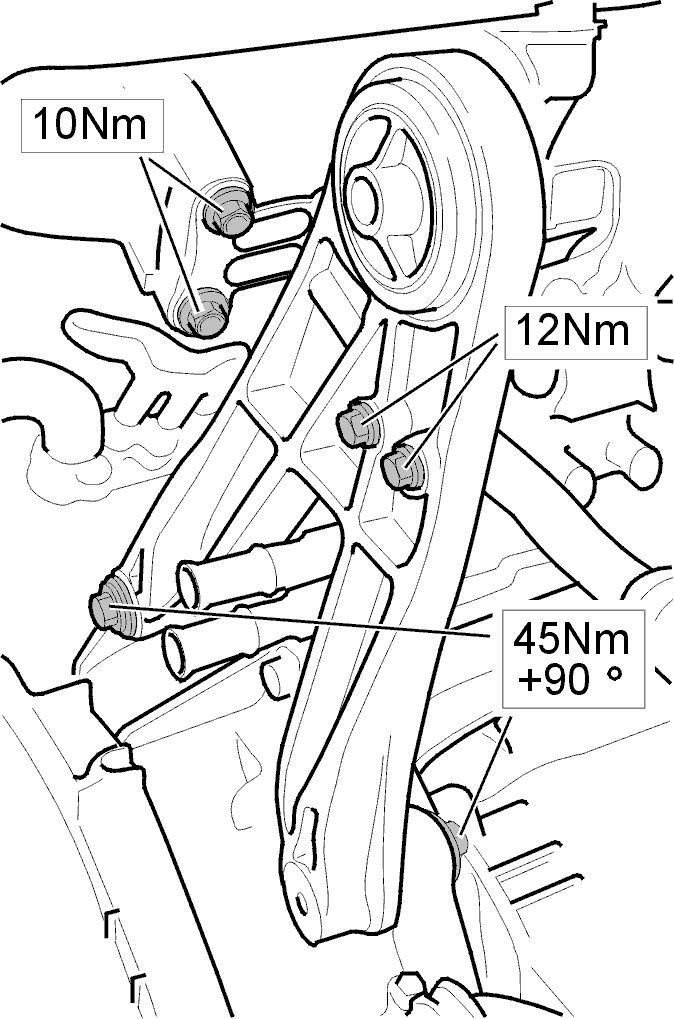

Fig 1: Torque Control Arm Screws With Torque Specifications

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install the new torque control arm and tighten as shown in the illustration.

Fig 2: Identifying Engine Stabilizer Brace

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install

the torque rod.
the screws for the brackets at the suspension turrets. Tighten to 50 Nm .
the screw for the torque rod mounting in the bracket on the engine. Tighten to 80 Nm .
