Replacing the gearbox: Preparation

Fig 1: Identifying Special Tool 999 5716 (Lifting Beam) And Special Tool 999 5460 (Lifting Hooks)

Courtesy of VOLVO CARS OF NORTH AMERICA.

(6 cylinder engines only) Installing the lifting tools. See Lifting tools Removing/Installing for 6 cylinder cars .

• (Diesel engines only) Remove the engine cover
• Install lifting beam 9995716 . Install lifting hooks 9995460
• Lift the engine to relieve the load on the engine pads.

Fig 2: Identifying Splash Guard Under Engine

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove

• the front wheels
• the splash guard under the engine.

Fig 3: Identifying Air Duct Cover And Bolts

Courtesy of VOLVO CARS OF NORTH AMERICA.

• the air duct cover.

Fig 4: Identifying Screw For Cable Duct

Courtesy of VOLVO CARS OF NORTH AMERICA.

• the cable duct screw.

Fig 5: Identifying Oil Pipes And Steering Gear

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove

• the oil pipes from the steering gear from the snap fasteners on the sub-frame
• the hose for the EVAP canister (Does not apply to diesel)
• any fuel line for the engine block heater and any engine block heater if mounted on the left hand side of the sub-frame
• any vacuum hose for the rear engine pad (applies to diesels), mounted on the left side of the sub-frame.

Fig 6: Identifying EVAP Canister Hose

Courtesy of VOLVO CARS OF NORTH AMERICA.

• the hose for the EVAP canister in the joint by pulling apart the hose. Route the hose under the anti-roll bar.

Fig 7: Identifying Exhaust Pipe Bracket Screws

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove

• the mounting for the exhaust pipe on the bracket
• the screws holding the exhaust pipe bracket. Disconnect the brake pipe from the snap fasteners on the bracket
• the bracket.

Fig 8: Identifying Cable Harness And Connectors At Rear Edge Of Sub-Frame

Courtesy of VOLVO CARS OF NORTH AMERICA.

• Remove the cable harness from the rear edge of the sub-frame. Disconnect the connectors. (Applies only to cars with 6-cylinder engines)
• Remove the heated oxygen sensor (HO2S) bracket from the mounting.

Fig 9: Identifying Anti-Roll Bar Link

Courtesy of VOLVO CARS OF NORTH AMERICA.

• Remove the anti-roll bar links from the anti-roll bar. Counterhold using a Torx wrench so that the ball joint boot is not damaged.

Fig 10: Identifying Lower Torque Rod And Nuts

Courtesy of VOLVO CARS OF NORTH AMERICA.

• Remove both the nuts retaining the lower torque rod
• Remove the screw and bend up the bushing with the holder towards the torque rod.

Fig 11: Identifying Front Engine Pad Screw

Courtesy of VOLVO CARS OF NORTH AMERICA.

• Remove the front engine pad screw.

Fig 12: Identifying Fender Liner And Nuts

Courtesy of VOLVO CARS OF NORTH AMERICA.

• Slacken off the right lower front part of the fender liner.
• Remove the plastic nuts on the fender liner
• Remove the splash guard
• Bend out the fender liner.

Fig 13: Identifying Vibration Damper

Courtesy of VOLVO CARS OF NORTH AMERICA.

• Remove the vibration damper. (Applies only to cars with 6-cylinder engines).

Fig 14: Identifying Right Hand Engine Mounting Screws

Courtesy of VOLVO CARS OF NORTH AMERICA.

• Remove both the right hand engine mounting screws.

Fig 15: Identifying Nuts And Screw For Steering Gear And Collision Protection

Courtesy of VOLVO CARS OF NORTH AMERICA.

• Remove the four nuts and the screw holding the steering gear to the sub-frame
• Remove the delivery line from the clips on the sub-frame
• Remove nut (A) holding the lower half of the collision protection. (Applies only to right-hand drive cars).

Fig 16: Identifying Ball Joint Nuts

Courtesy of VOLVO CARS OF NORTH AMERICA.

• Remove the nuts from the ball joints. Counterhold with a Torx wrench so that the ball joint boot is not damaged.

Fig 1: Identifying Engine Cover

Courtesy of VOLVO CARS OF NORTH AMERICA.

• Disconnect the battery negative lead according to Battery, disconnecting .
• Remove the engine cover.

Fig 2: Identifying Engine Stabilizer Brace

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove

• the screw for the torque rod mounting in the torque control arm on the engine.
• the screws at the suspension turrets.
• the torque rod.

Remove the three-way catalytic converter (TWC) according to Replacing the three-way catalytic converter (TWC) .

Fig 3: Identifying Collision Protection Over Oil Filter

Courtesy of VOLVO CARS OF NORTH AMERICA.

Applies only to right-hand drive:

Remove the collision protection system over the oil filter.

Remove the oil drain.

Fig 4: Identifying Lower Oil Pipe

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the lower oil pipe from the engine.

Lower the car.

Fig 5: Identifying Fuel Filter Nuts And ABS Connector

Courtesy of VOLVO CARS OF NORTH AMERICA.

Applies only to left-hand drive:

Remove the ABS connector.

Remove the fuel filter from the right-hand suspension turret and place it to one side.

Fig 1: Identifying Exhaust Pipe Connection To Turbocharger

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove

• the battery negative lead. First read Battery, disconnecting .
• the engine cover.
• the nuts for the exhaust pipe connection to the turbocharger (TC).
• the exhaust pipe. Move it to one side.

Fig 2: Identifying Splash Guard Under The Engine

Courtesy of VOLVO CARS OF NORTH AMERICA.

Raise the car and remove the splash guard from under the engine.

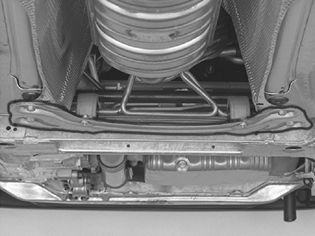

Fig 3: Identifying SIPS Member

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove

• the member holding the front edge of the three-way catalytic converter (TWC).
• the brake pipe from the member.
• the mountings for the three-way catalytic converter (TWC) on the member.
  NOTE:

  Hang the heat deflector plate up with 2 screws.

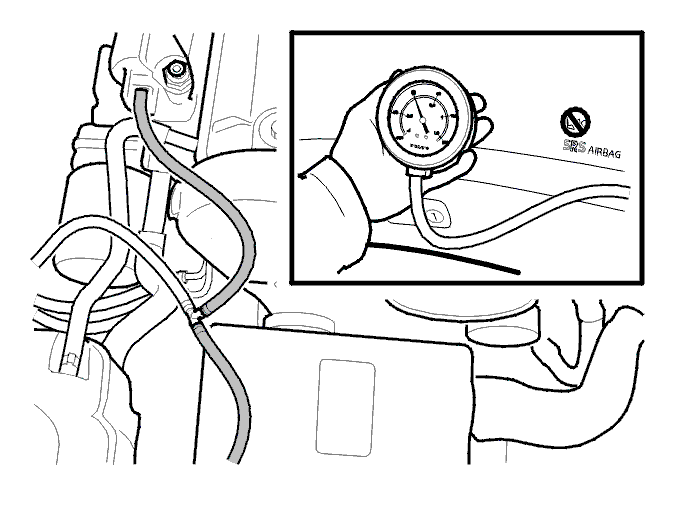

Fig 1: Checking Manometer Values

Courtesy of VOLVO CARS OF NORTH AMERICA.

Connect the test equipment

Connect manometer 5230  to the hose between the intake manifold and the charge air pressure sensor. Use a T piece (P/N 659 248-9  ), and a hose (P/N 1 257 639-3  ).

Route the manometer into the passenger compartment.
