Pull out the ignition

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

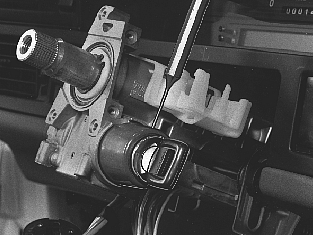

Fig 1: Identifying Ignition Switch, Key And 2 mm Drift

Courtesy of VOLVO CARS OF NORTH AMERICA.

Insert the ignition key in the ignition.

Turn the key to position 1.

Press in the lock lug. Use a 2 mm drift.

Remove the holder for the connector.
