Steering column/shaft/seal/bearing/lower shaft universal joint, Replacing (Cars without SRS): Installation: Install:

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

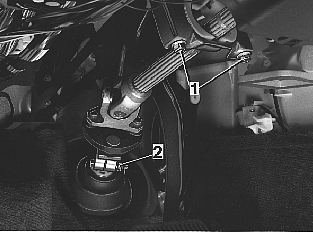

Fig 1: Identifying Screws For Bearing And Lower Mounting

Courtesy of VOLVO CARS OF NORTH AMERICA.

the bearing for the steering column (1). Tighten with 25 Nm .
the steering shaft to the lower joint (2). Tighten with 20 Nm .
the locking eye.

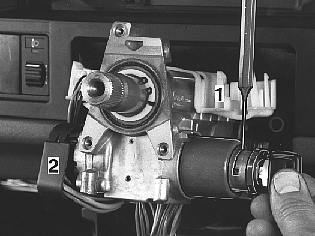

Fig 1: Identifying Ignition, Key And Drift

Courtesy of VOLVO CARS OF NORTH AMERICA.

the holder for the connector, and the connector (1)
the connector for the ignition (2)
the ignition. Turn the key to position 1. Press down the lock lug. Press in the lock in the sleeve. Check that the lock's lock lug ends up correctly in the sleeve's groove.
the panel above the pedals.

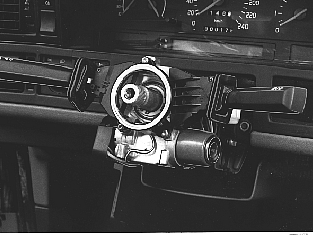

Fig 1: Identifying Ignition Switch, Turn Signal Lever And Wiper Lever

Courtesy of VOLVO CARS OF NORTH AMERICA.

the switches
the slip ring
