Install the steering wheel casing

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

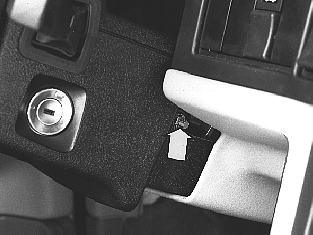

Fig 1: Identifying Steering Wheel Casing

Courtesy of VOLVO CARS OF NORTH AMERICA.

Make sure that the gaiters for the switches end up in the correct position. Also make sure that no cables are trapped

Make sure that the front wheels stand straight ahead.

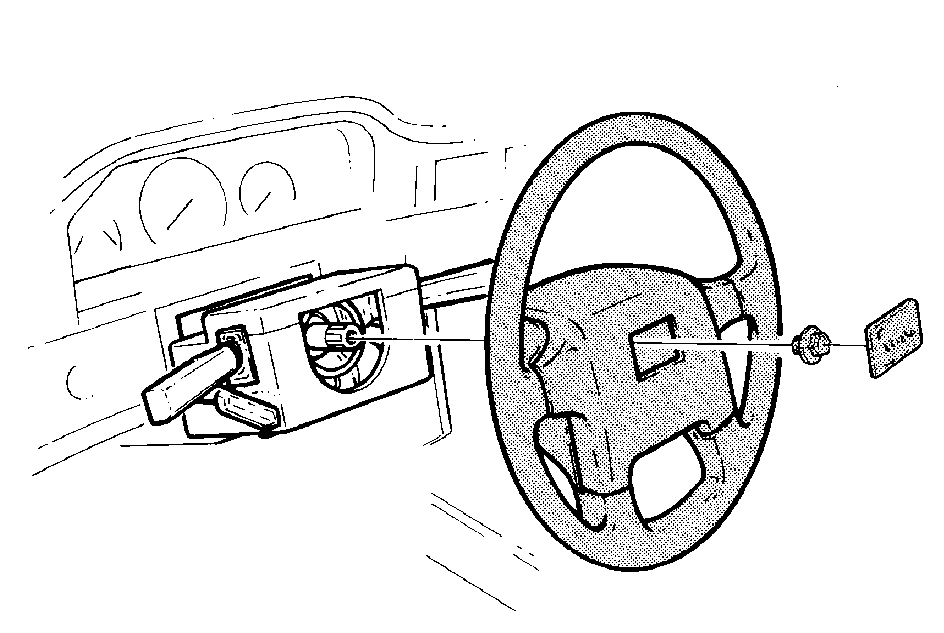

Install the steering wheel. Tighten with 40 Nm.

Adjusting friction for steering wheel position adjustment.

Fig 2: Identifying Lock Mechanism Nut

Courtesy of VOLVO CARS OF NORTH AMERICA.

Lower the lever to open position. Pull back the steering wheel as far as possible. Slightly tighten the lock mechanism's nut, see Fig 2.

Try locking the adjustment with the lever.

CAUTION:

Do not tighten the adjustment too hard.
