Install steering wheel
WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.
HINT: Ensure that front wheels are pointing straight ahead.

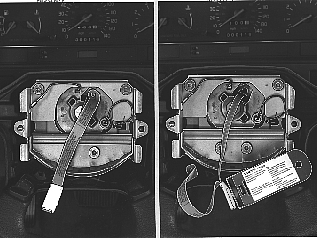

Pass contact reel wire through steering wheel.
Install steering wheel carefully until both catches on contact reel are seated in recesses in steering wheel hub. Install and finger-tighten steering wheel screw.
CAUTION:
Do not turn steering wheel when mounted on steering shaft.
Because the contact reel is locked, it will be damaged beyond repair if wheel is turned in this situation.
Remove contact reel locking screw. Install in the parking hole.
Connect tool 9988695 to contact reel power supply.
