Remove steering wheel module
WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.
Undo two Torx screws at rear of steering wheel. Turn the steering wheel 90° in both directions to access the screws.

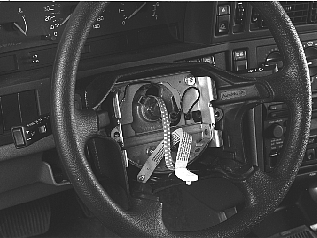

Disconnect the connector and lift off the steering wheel module.
Remove the screw from its "parking hole" in the steering wheel. The screw must remain attached to plastic strap.
Remove steering wheel screw. Ensure that front wheels and steering wheel are in straight-ahead position. Lift off steering wheel.
Take care to ensure that neither connector nor plastic strip and screw catch in steering wheel during removal.
Remove:
- steering wheel covers. Use long Torx TX15 tool for the upper cover. Use Torx TX 25 for the lower cover.
- panel under dashboard.
