Removing Steering Column Components: Notes

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

Remove knee bolster (certain variants)

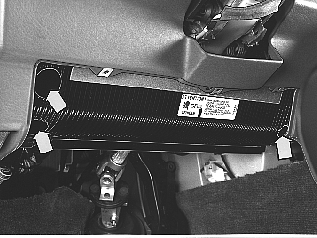

Fig 1: Identifying Knee Bolster Screws

Courtesy of VOLVO CARS OF NORTH AMERICA.

Disconnect key lock cable (certain variants).

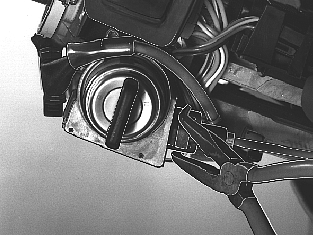

Fig 2: Identifying Ignition, Key And Flat Nosed Pliers

Courtesy of VOLVO CARS OF NORTH AMERICA.

Move ignition key to position I.

Use flat nosed pliers. Press together the catches on the cable.

Remove SRS contact reel (three screws).

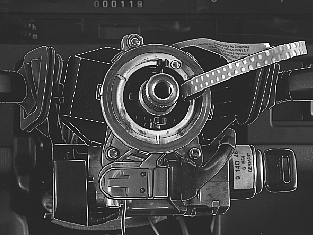

Fig 3: Identifying SRS Contact Reel

Courtesy of VOLVO CARS OF NORTH AMERICA.

Unhook SRS cable clip.

Disconnect cable from contact reel.

Place contact reel to one side.

Remove:

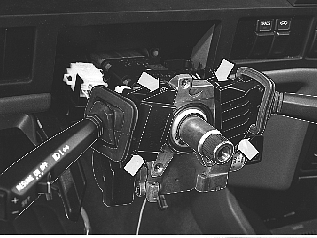

Fig 4: Identifying Turn Signal And Windshield Wiper Lever Screws

Courtesy of VOLVO CARS OF NORTH AMERICA.

turn signal and windshield wiper levers
ignition switch connector
holder for connectors
wiring harness at underside of steering column.
