Steering column/shaft/seal/bearing/lower shaft joint, Replacing (Cars With SRS): Install:

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

lower universal joint to steering gear. Tighten to 20 Nm .
locking spring.

NOTE:

Different pinion versions. See Different pinion versions .

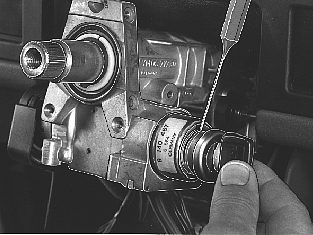

Fig 1: Identifying Ignition Switch And 2 mm Drift

Courtesy of VOLVO CARS OF NORTH AMERICA.

the ignition switch with key turned to position I. Depress locking tab and install the switch
connector to ignition switch.

Fig 1: Identifying Turn Signal And Windshield Wiper Lever Screws

Courtesy of VOLVO CARS OF NORTH AMERICA.

turn signal and windshield wiper levers
connector holder
connectors
wiring harness.

Fig 1: Identifying Steering Wheel Covers And Panel Under Dashboard

Courtesy of VOLVO CARS OF NORTH AMERICA.

panel under steering wheel
steering wheel covers.
