Install the contact reel and tighten to 2.5 Nm

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

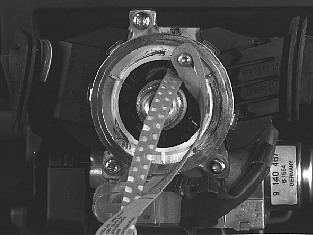

Fig 1: Identifying Connector, Plastic Strip And Contact Reel
GLL126398Courtesy of VOLVO CARS OF NORTH AMERICA.

Connect connector. Ensure that locking tabs are engaged securely and that rubber cap is in position.

Secure cable with the two clips.
