Install steering shaft boot

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

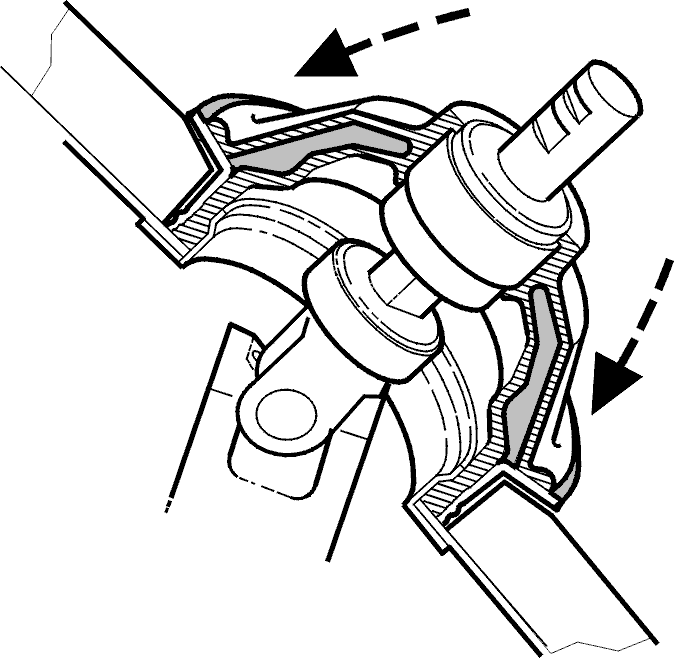

Fig 1: Identifying Steering Shaft Boot And Needle Bearing

Courtesy of VOLVO CARS OF NORTH AMERICA.

Lubricate needle bearing in boot with low-temperature grease, P/N 1161417-9 (30 g).

Fold back upper section of boot.

Lubricate the inside of the inner section of the boot with soapy water.

Thread the inner section of boot around metal collar in firewall panel, ensuring a good seal all round.

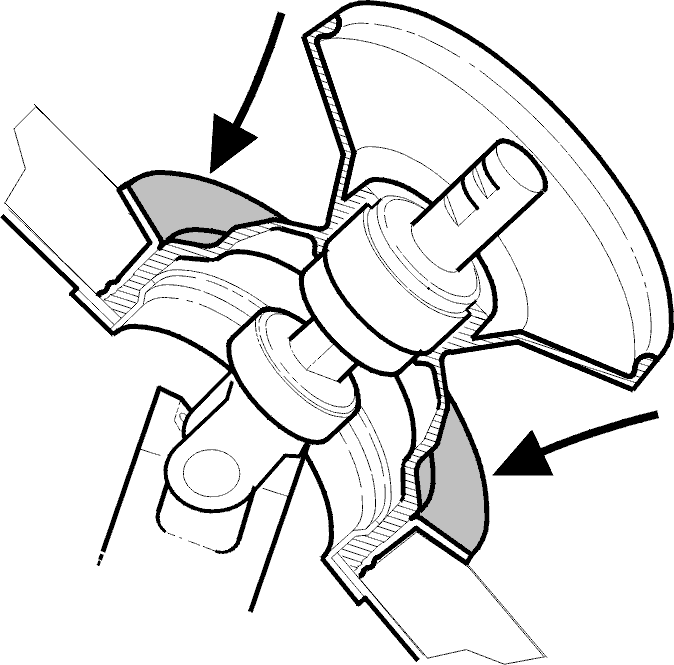

Fig 2: Identifying Steering Shaft Rubber Grommet

Courtesy of VOLVO CARS OF NORTH AMERICA.

Lubricate inner side of locking ring with soapy water.

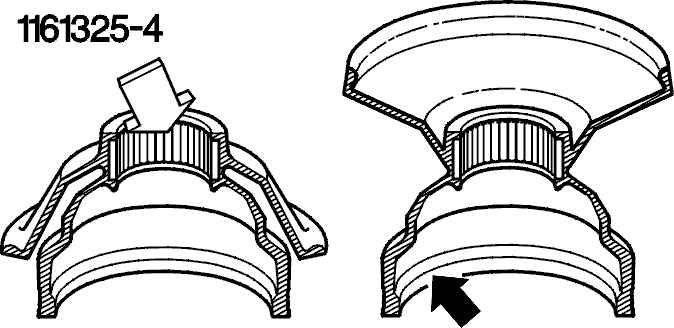

Fig 3: Identifying Inner Side Of Locking Ring

Courtesy of VOLVO CARS OF NORTH AMERICA.

Press ring into position around inner section of boot, cowl panel side. The upper section should remain folded back.

Fold down the outer section of the boot towards the snap ring flange. Make sure it is in contact all around.

Fig 4: Identifying Upper Section Of Boot And Locking Ring Flange

Courtesy of VOLVO CARS OF NORTH AMERICA.
