Install steering column

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

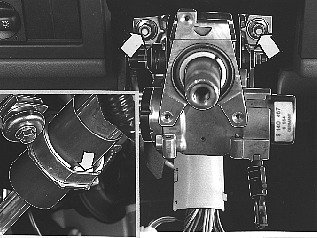

Fig 1: Identifying Nuts And Washers From Steering Column Adjuster Bracket

Courtesy of VOLVO CARS OF NORTH AMERICA.

Lubricate the splines in the steering column with low-temperature grease, P/N 1161417-9 (30 g) .

Counterhold on the bearing. Guide steering column into mounting and onto steering shaft.

NOTE:

Take care to ensure that spring clip in mounting is not displaced when installing column.
