Install steering column mounting and steering shaft

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

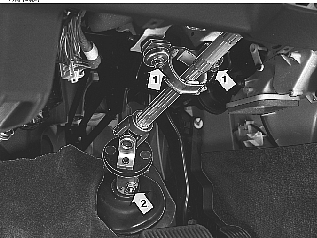

Fig 1: Identifying Column Mounting Screws, Steering Shaft And Universal Joint

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install bearing and mounting (1). Tighten mounting nuts to 25 Nm .

Ensure that steering shaft splines are clean.

NOTE:

Lubricate steering shaft splines and steering column bearing mounting with low-temperature grease, P/N 1161417-9 (30 g). Lubrication is important to avoid noise from the steering column.

Reconnect steering shaft to universal joint (2). Tighten to 20 Nm . Install locking shackle.
