Install ignition switch interlock cable (certain variants)

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

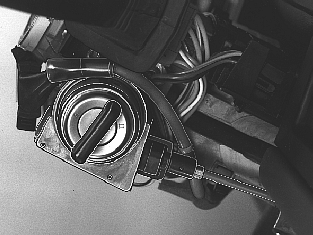

Fig 1: Identifying Ignition Switch And Key
GLL126415Courtesy of VOLVO CARS OF NORTH AMERICA.

Turn ignition key to position I or II.

Press cable into place in ignition switch. Ensure that the catches on the cable engage in the ignition switch.
