Install the Brake Caliper
WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

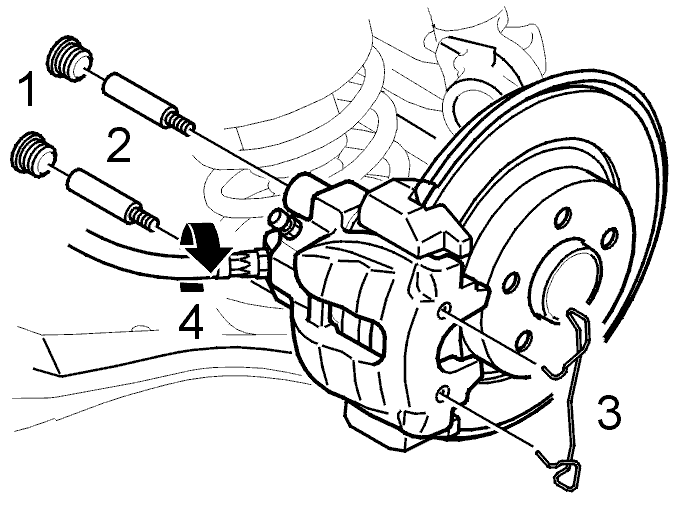

Lubricate the locating pins (2) using grease. P/N 1161325-4.
Insert the locating pins into the rubber sleeves. The pins should slide into the sleeves easily.
Secure the brake hose (4) loosely in the caliper.
Install:
- a brake pad in the piston
- the other pad in the caliper holder
- the brake caliper. Tighten the locating pins to 30 Nm
- the securing springs (3)
- the protective caps (1).
Tighten the brake hose. Tighten to 16 Nm .
Fill and bleed the brake system
See Brake System, Bleeding (Using Bleeding Unit) .
Pressure test the brake system
See Pressure test the brake system .
Install the wheel
