Adjust Pressure Against Weatherstrip Front Side Window

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

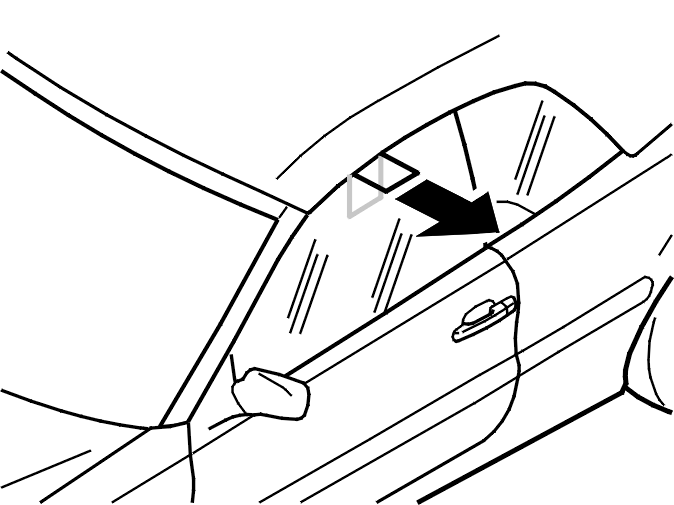

Fig 1: Checking Pressure Of Window Against Weatherstrip

Courtesy of VOLVO CARS OF NORTH AMERICA.

Check that the pressure of the window against the weatherstrip is the same across the entire top edge of the window.

HINT: Clamp a strip of paper between the weatherstrip and the window and pull to feel the pressure.

If the pressure is the same, go to point Final adjustment of front side window .

If the pressure is not the same, adjust using the lower adjustment screws.

If this is not sufficient, shim in the window as follows.
