Final Adjustment Of Front Side Window

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

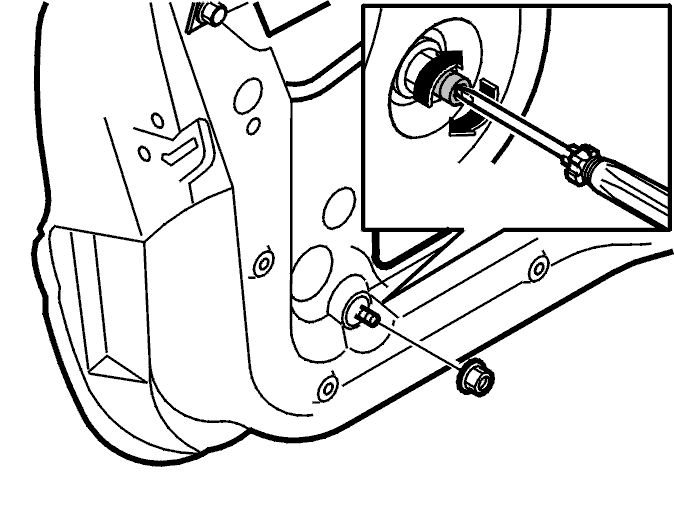

Fig 1: Final Adjustment Of Front Side Window (1 Of 2)

Courtesy of VOLVO CARS OF NORTH AMERICA.

Fine adjust the contact pressure using the lower adjustment screws.

HINT: Turn counter-clockwise to increase the pressure against the weatherstrip.

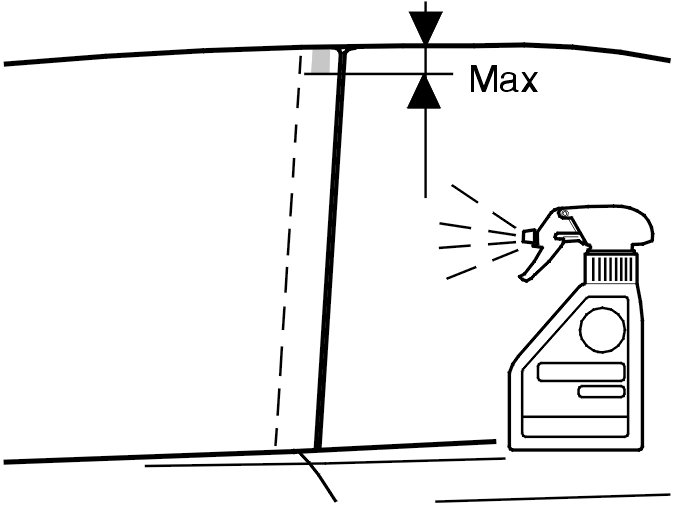

Fig 2: Spraying Water On Upper Part Of B-Post Weatherstrip

Courtesy of VOLVO CARS OF NORTH AMERICA.

Spray water on the upper part of the weatherstrip for the B-post.

Close the door to the first lock position.

The water bead that is formed must be a maximum of 10 mm long.

Check:

the seal and adjust if necessary
that the window reaches the uppermost position when the door is open.
