Measure the Lateral Run Out

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

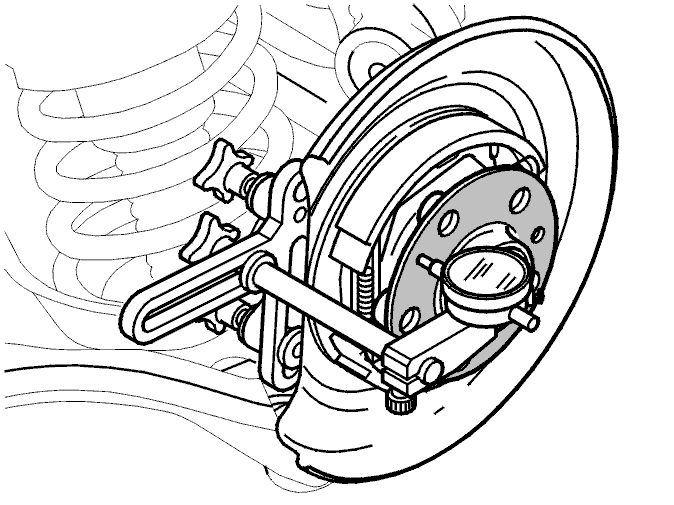

Fig 1: Test Gauge Point Against Hub Flange

Courtesy of VOLVO CARS OF NORTH AMERICA.

Put the test gauge point against the hub flange as illustrated.

Rotate the hub gently.

Note the test gauge run-out. Hub maximum lateral run-out: 0.020 mm.

If lateral run-out exceeds the value, replace the hub.

To replace the hub, FWD, see Rear Wheel Hub, Replacing .

To replace the hub, AWD, see.
