Install the New Boots On the Drive Shaft
WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.
- Fasten the drive shaft in a vise.

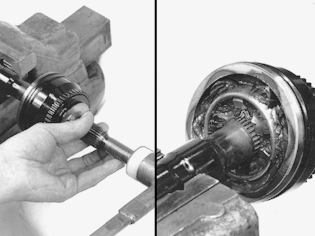

Install the constant velocity joint on the drive shaft.
- Ensure that inner ring is straight in the constant velocity joint.
Tap the constant velocity joint using a plastic club.
- Check that the lock ring sits in its groove.
