Preparations For Removal Of the Transmission

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

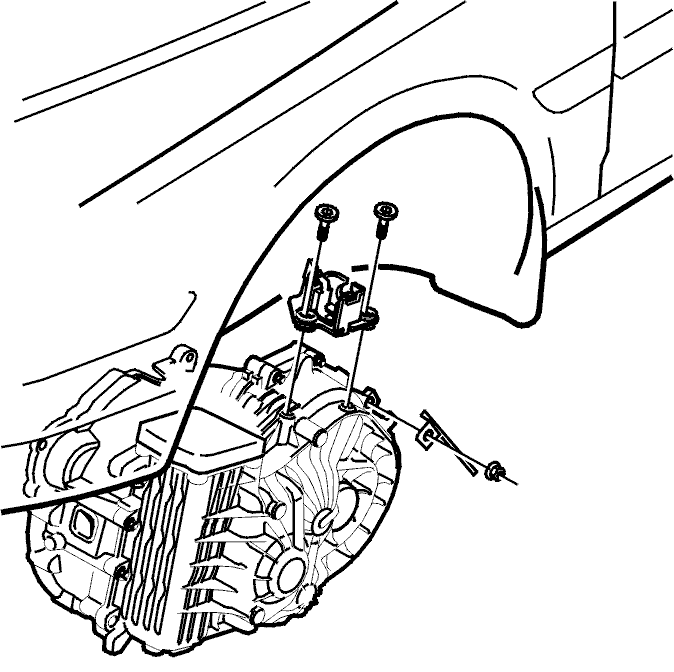

Fig 1: Identifying Transmission Removed

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove:

the contact rubber on the sub-frame
the 3 nuts for the fender liner. Fold the fender away from the screws
the screw and the nut for the clamp for the cable harness on the transmission
the bracket for the connectors.

Remove the 2 outer bracket screws (at the side member)
