Removing the Cover And Engine Mounting

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

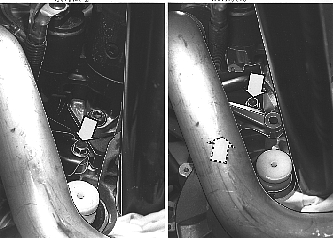

Fig 1: Identifying Rear Engine Mounting Cover And Rear Mounting

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove:

the cover at the rear engine mounting
the rear mounting from the transmission.
