Installing the Lifting Hook

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

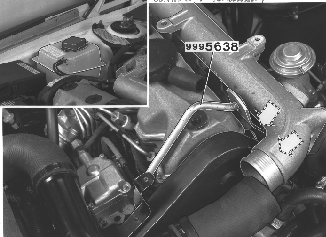

Fig 1: Identifying Lifting Hook

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install lifting hook 9995638 .

Remove the two manifold nuts. Leave the washers in place.

Install the lifting hook in the mounting eyelet, and the two nuts.

Lift of the engine coolant expansion tank from the mounting and put it to one side.
