Install the sub-frame

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

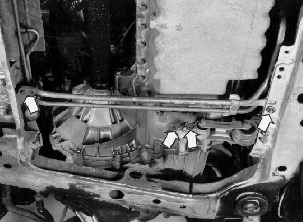

Fig 1: Identifying Screws In Sub-Frame And Support Bracket

Courtesy of VOLVO CARS OF NORTH AMERICA.

CAUTION: Use new screws (4 x M14). Lubricate the screw threads. Ensure that the screws for the steering gear locate in the sub-frame

Start on the left-hand side. Lift the sub-frame using the mobile jack. Locate the screws for the steering gear in the sub-frame
Install the screws in the sub-frame and the support bracket. First tighten the frame screws to 105 Nm + 120 . Then tighten the screws for the frame bracket to 50 Nm . Use bevel protractor 9512050
Move the mobile jack to the right-hand side. Remove the existing screws and repeat the operation.

Remove:

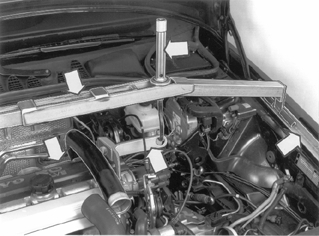

Fig 2: Identifying Lifting Hook, Lifting Beam, Fender Edge Supports And Lifting Fork

Courtesy of VOLVO CARS OF NORTH AMERICA.

the lifting hook, the lifting beam, the fender edge supports and the lifting fork.

Tighten the nut for the splash guard at the rear engine pad to 50 Nm.

Install:

Fig 3: Identifying Front Engine Mounting Subframe Bolts

Courtesy of VOLVO CARS OF NORTH AMERICA.

5 new nuts in the steering gear. Tighten to 50 Nm
The screw for the sub-frame and the front engine mounting. Then tighten the screws for the front and rear engine mountings to 50 Nm .

Install:

Fig 4: Identifying Oil Pipe Bracket Bolts & Steady Bar Bracket Bolts

Courtesy of VOLVO CARS OF NORTH AMERICA.

The torque rod mounting on the transmission. Use new screws. Use bevel protractor 9512050 . Tighten to: 18 Nm + 90° for early models, M8 35 Nm + 40° for later models, M10
The screws for the bracket for the oil pipes. Tighten to 25 Nm .

Tighten the clamp for the exhaust pipe

Twist the pipes when tightening.
