Splash Guards, Control Arms

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

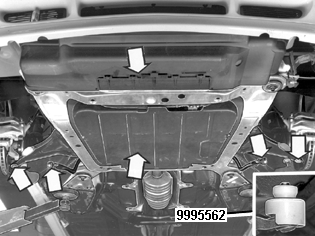

Fig 1: Identifying Front Splash Guard

GLL109151

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove:

the front splash guard.
the cover under the engine.

Remove:

the control arm/ball joint from the wheel spindle (both sides)
Protect the ball joints with protective sleeves 9995562 (both sides).
unhook the linkages from the anti-roll bar.
