Right Drive Shaft

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

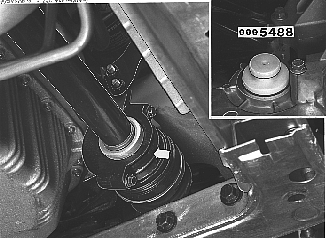

Fig 1: Identifying Bearing Cap And Plug

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove:

right drive shaft.

Remove:

bearing cap.

Pull out the inner section of the drive shaft and fold out the spring strut at the same time.

NOTE: Take care not to damage the seal in the transmission.

Install seal plug 9995488 .

Let the drive shaft rest on the sub-frame and oil pipe.
