Oil Cooler

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

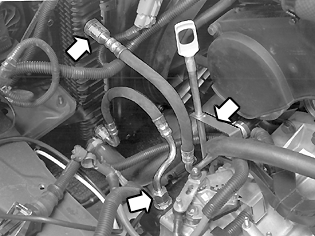

Fig 1: Identifying Dipstick Pipe With O-Rings And Oil Cooler Hoses

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove:

hoses to the gearbox's oil cooler.
the supply hose by the cooler's upper quick connection and return hose by the gearbox.

Remove:

the dip stick pipe

Seal all openings with plastic plugs.
