Lowering the Sub-Frame

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

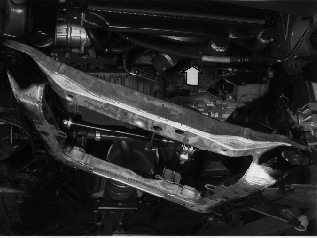

Fig 1: Lowering Sub-Frame

Courtesy of VOLVO CARS OF NORTH AMERICA.

NOTE: Check that the steering gear screws are free of the sub-frame. Ensure that the control arm is free of the right drive shaft boot.

Remove the mobile jack.
Let the frame hang freely from the screws on the right-hand side.
Tape the rear edge of the drive shaft end to the oil pipe.
Remove the earth cables from the gearbox.
