Lifting Device

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

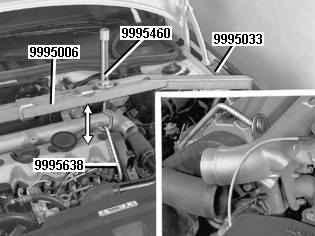

Fig 1: Identifying Lifting Device Attached

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove:

the two manifold nuts. Let the washers remain in place.

Install:

lifting hook 9995638 in the securing lug, and the two nuts.
fender edge support 9995033 on the fender edges.
lifting 9995006 bar on the support. Place the bar straight above the lifting hook 9995638 .
lifting hook 9995460 . Tightened the hook approximately 5-10 mm so that the engine pants off-loaded slightly.

Note the measurement between the lifting bar and the valve cover.
