Left-Hand Wheel Housing Continued

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

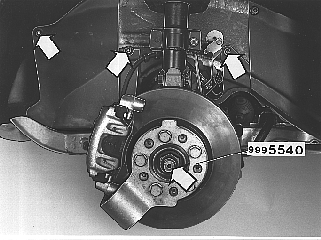

Fig 1: Identifying Wheel Arch Liner Nuts, Insulation And Screws, Drive Shaft Nut And Counterhold

GLL126119

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove:

the front plastic nuts to the wheel arch liner on the left-hand side and the screws for the sound insulation above the drive shaft.
sound insulation.
left-hand drive shaft nuts. Apply the counterhold 9995540 and remove the unit.

Remove:

the drive shaft in the hub.
Knock the drive shaft end about 10-15 mm into the hub. Use a plastic or copper hammer.
