Gearbox/Torque Converter, Replacing: Removing: Jack

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

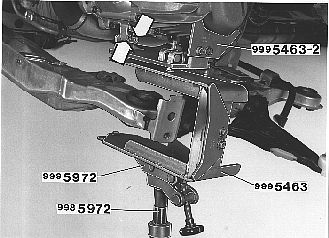

Fig 1: Identifying Fixtures And Mobile Jack

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install:

universal tool 9995972 and gearbox fixture 9995463 on the jack 9985972 .
the gearbox fixture on the gearbox with the torque stay mounting's screws.
At the same time align the support plate 9995463 on the fixture.

Position the jack.
