Units On the Sub-Frame
WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

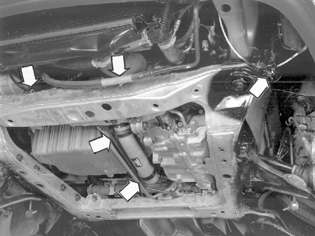

Fig 1: Identifying Cable Conduit On Sub-Frame, Charge Air Pipe, Vacuum Box To Sub-Frame And Clamp On Negative Cable Bracket
Install:
- the cable conduit on the sub-frame.
- the charge air pipe.
- the vacuum box to the sub-frame.
- clamp on the negative cable bracket
NOTE:
The rear hose clamp for the charge air pipe is tighten from above.
