The Sub-Frame

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

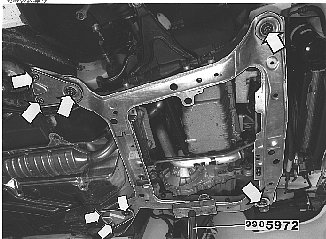

Fig 1: Identifying Mobile Jack

Courtesy of VOLVO CARS OF NORTH AMERICA.

Fit the sub-frame.

NOTE: Use new screws (4 x M14). Lubricate the screw threads. Make sure that the screws for the steering gear locate in the sub-frame.

Start on the left-hand side. Raise the sub-frame using mobile jack 9985972 . Locate the screws for the steering gear in the sub-frame.
Fit the screws for the sub-frame and support bracket. First tighten the sub-frame screws to 105 Nm + 120° and then the screws for the sub-frame, s bracket with 50 Nm . Use an angle gauge 9512050 .
Move the mobile jack to the right-hand side. Remove the existing screws and repeat the operation.
