Rear Engine Mounting, Earth Cables

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

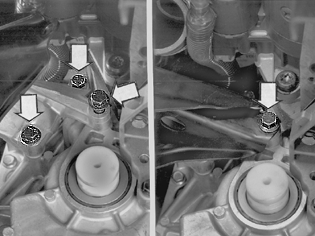

Fig 1: Identifying Rear Engine Mounting Screws

Courtesy of VOLVO CARS OF NORTH AMERICA.

Loosely assemble the rear engine pad and impact protection into a single unit with a nut lock nut.
Install the mounting on the gearbox (3 screws). Tighten the two rear screws to 50 Nm . Remove the front screw again.
Tighten the engine pad's splash guard with the screw to the mounting.
Press up the cover against the mounting. Tighten the screw. Tighten to 50 Nm .

Install (front edge of the gearbox):

battery's earth cable.
cable harness's earth cable.
