Control Arm And Linkage To the Anti-Roll Bar
WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

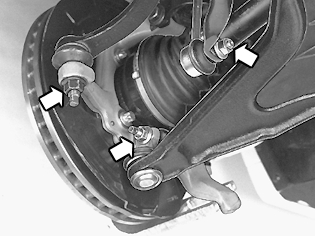

Install on both sides:
- control arm/ball joint to wheel spindle. Remove the sleeve 9995562 from the ball joint. Make sure that the ball joint pin's groove fits to the screw hole in the wheel spindle. Use new lock nuts for the screws. Tighten to 50 Nm .
- the link to the anti-roll bar. Use new lock nuts. Tighten to 50 Nm .
