Adjusting the Gear Cable

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

Move the gear shift lever to position R.

NOTE: Make sure the gear cable runs freely in the engine compartment.

Fig 1: Setting R Position

Courtesy of VOLVO CARS OF NORTH AMERICA.

Push the lever on the gearbox forward to the P-position.

NOTE: Do not touch the gear cable. The position of the gear cable must not be affected.

Check the P-position by trying to roll the car.

Now turn the lever to the next position (R-position).

Apply grease 1161241-3 to the lever's spindle.

NOTE: Exercise care so the position of the lever does not change.

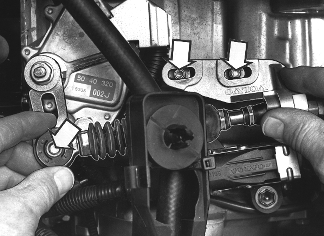

Fig 2: Identifying Gear Shift Lever Washers & Nuts

Courtesy of VOLVO CARS OF NORTH AMERICA.

Carefully fit the cable on the lever spindle and on the stud bolts.

Make sure the position of the gear shift lever and the lever do not change.

Fit washers (only early design) and nuts.

Tighten the nuts by hand and crosswise. Now tighten with torque 25 Nm .

Fit the washer and circlip on the lever.
