Cleaning And Checking: Notes

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Gearbox Removed

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the oil pipe with the hose from the gearbox

Flush the pipe and hose using Dexron IIE/Ford Mercon ATF oil.

Install the oil pipe on the new gearbox

Install a new O-ring on the quick-release connector.

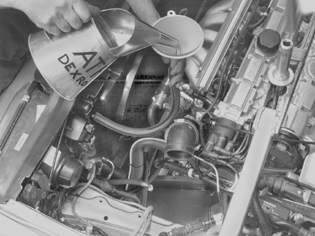

Fig 2: Flushing Oil Cooler Using Dexron IIE/Ford Mercon ATF Oil

Courtesy of VOLVO CARS OF NORTH AMERICA.

Flush oil cooler using Dexron IIE/Ford Mercon ATF oil.

Fit a hose to the top connection on the cooler.

Place a collection vessel under the return hose. Flush with Dexron IIE/Ford Mercon ATF oil.
