Installing the transmission

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

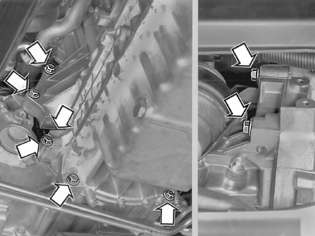

Fig 1: Identifying Torque Converter Screws

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install the transmission

Use the mobile jack and gearbox fixture to adjust the height and angle. Locate the gearbox on the engine.

Fit the 7 screws. Tighten crosswise by hand. Then tighten crosswise. Torque: 50 Nm .

NOTE: When tightening the screws, check carefully that the guide bushings locate correctly in their guide holes. Check that the torque converter cover is in contact with the engine before tightening.

Remove the fixture and the mobile jack from the gearbox.
