Installing the engine pad

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

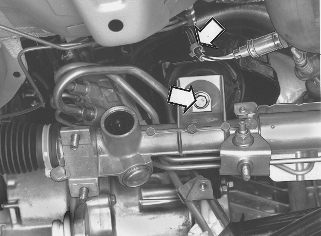

Fig 1: Identifying Steering Gear Engine Pad Screw

Courtesy of VOLVO CARS OF NORTH AMERICA.

Align the engine pad's guide pin in the cover. Use a new nut. Fit the nut by hand.

Install the screw for the steering gear engine pad

Do not tighten the screw.

Remove the support hook 9995045 .

Install:

Heated oxygen sensor cable with clamps in the cover
Connector and cable to the speed sensor.
Earth lead on the gearbox.

Right-hand drive cars only

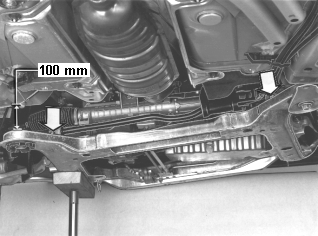

Fig 2: Identifying Distance From Body

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the tape from the drive shaft and let the shaft rest on the oil pipe.

Raise the frame to approx. 100 mm from the body.

Align the steering gear on the right-hand side and the collision protection system on the sub-frame. Install the screws for the anti-roll bar's left-hand bearing with the cap and tighten both bearing caps.

Torque: 50 Nm .
