Remove the Screw, Front Engine Pad/Sub-Frame

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying Collision Protection System/Sub-Frame Nut

Courtesy of VOLVO CARS OF NORTH AMERICA.

Loosen the screw for the engine pad/steering gear about one turn.

Remove the securing nuts for the steering gear on the sub-frame (x5).

Right-hand drive cars only:

Remove the nut (A) for the collision protection system/sub-frame.

Undo the sub-frame from the car.

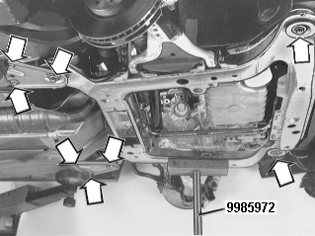

Fig 2: Identifying Jack

Courtesy of VOLVO CARS OF NORTH AMERICA.

Place the jack as a 9995972 support under the left-hand side of the sub-frame, applied lightly.

Remove the screws for the sub-frame support brackets on the body (both sides).

Unscrew the screws between the frame and body (right-hand side) about 15 mm.

Remove the screws on the left-hand side.

Right-Hand Drive Cars Only:

Fig 3: Identifying Subframe

Courtesy of VOLVO CARS OF NORTH AMERICA.

Lower the sub-frame approximately 100 mm.

Make sure that the 5 steering gear screws and the collision protection system screws release from the frame.

Remove the screws for the anti-roll bar's bearing cap (left-hand side). Loosen the screws on the right-hand side so that only a few threads remain.

Tie up the anti-roll bar tot he steering gear as illustrated.
