Separating the Bevel Gear/Chain Housing

WARNING: This page is about a different car, the 2002 Volvo C70, 2001 Volvo C70, 2000 Volvo C70, 1999 Volvo C70, and 1998 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

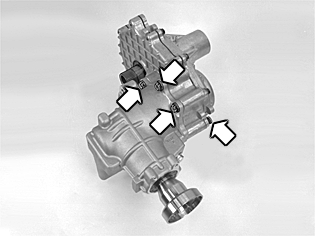

Fig 1: Identifying Chain Housing Screws

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the 4 screws. Pull the chain housing straight out from the bevel gear.

NOTE: Do not place the chain housing with the opening for the bevel gear facing down, oil will run out.
